36V or 48V Systems

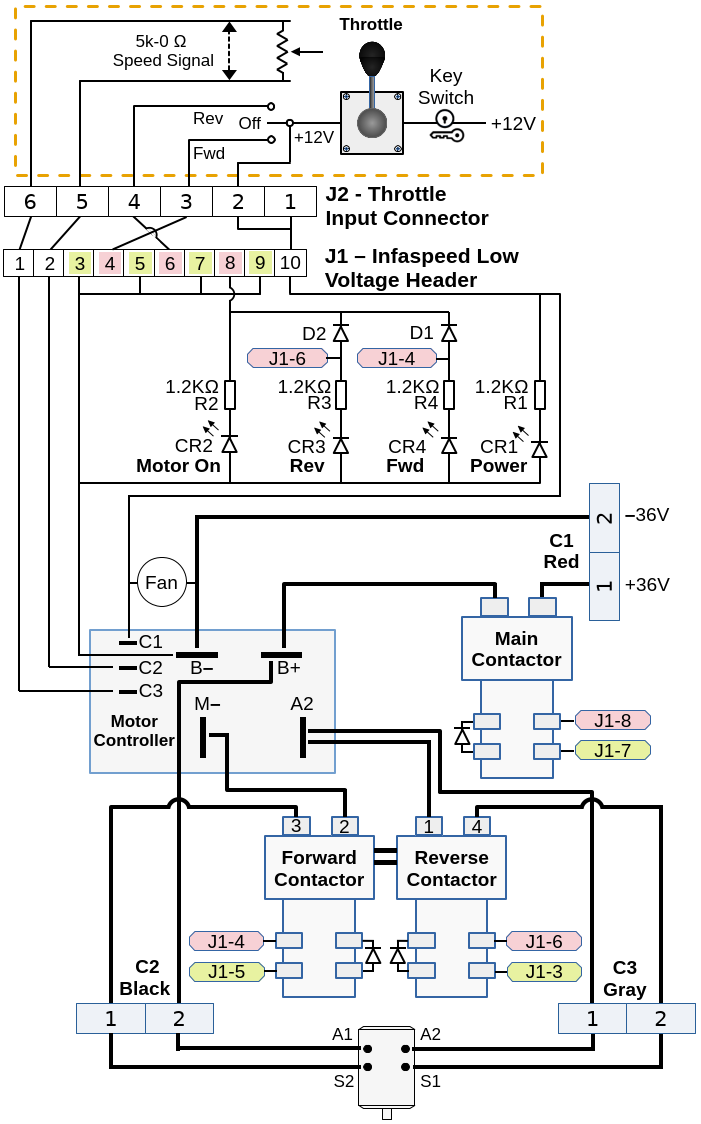

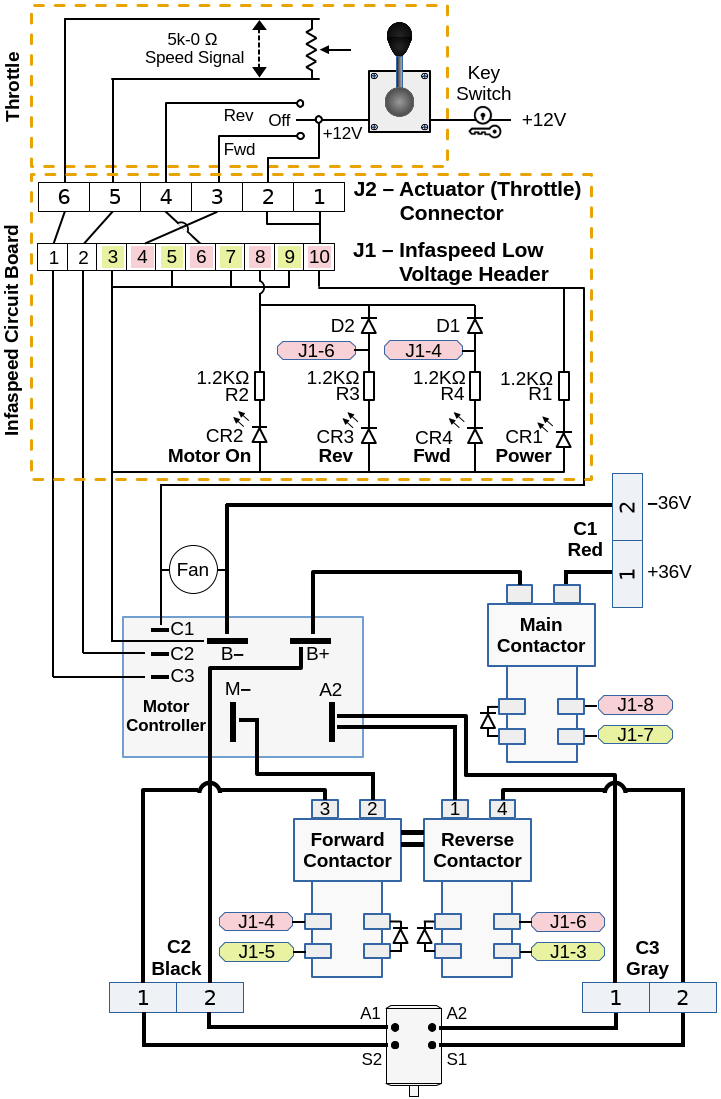

Motor Control Schematics
A print-ready version of this information is available here.

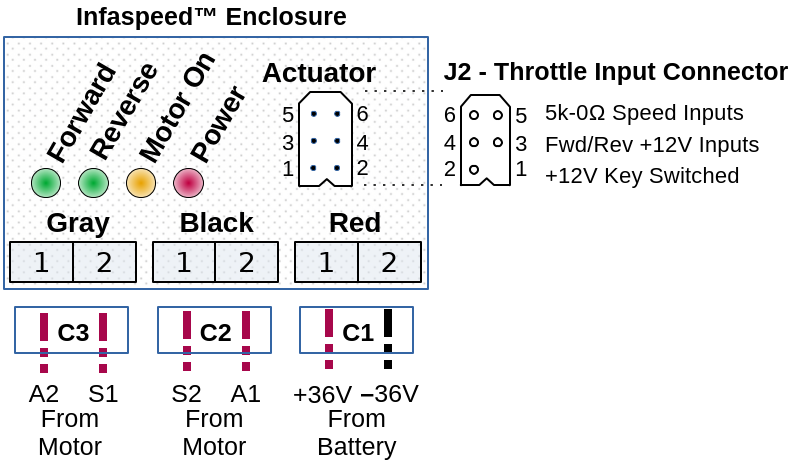

Infaspeed Enclosure Connections
Infaspeed Enclosure

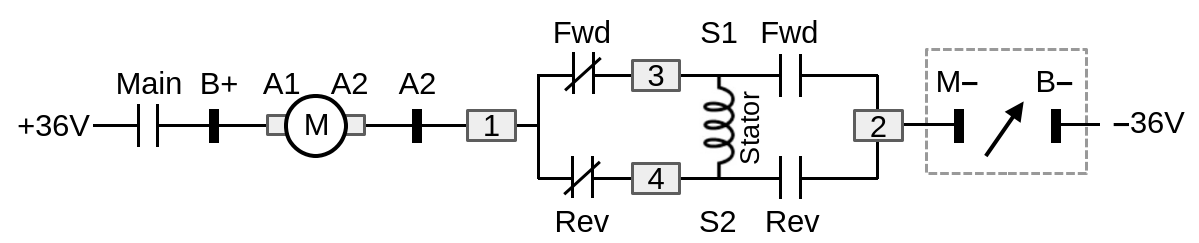

36/48V Circuit
The motor controller uses PWM to vary M– to B– voltage in response to the throttle speed signal.

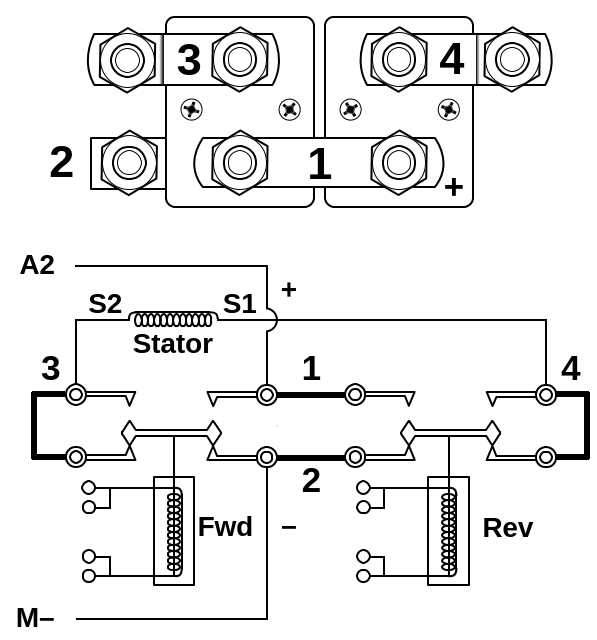

Reversing Contactor Detail
